Condition & Condition Group

Overview​

Condition Nodes and Condition Group Nodes are evaluation nodes used to determine logical outcomes within the graph system. They evaluate input data and output a boolean result (True or False) without performing gameplay actions or controlling execution directly.

These nodes form the decision layer of the graph and are commonly used by Trigger Node and Branch Node.

Purpose​

Condition Nodes and Condition Group Nodes are used to:

  • Evaluate logical conditions

  • Produce boolean results for decision-making

  • Gate execution or control flow

  • Combine multiple conditions into higher-level logic

They allow complex rules to be expressed in a clear and modular way.

Execution Behavior​

  • Condition Nodes are evaluated when their output value is required.

  • Each Condition Node evaluates its inputs and outputs either True or False.

  • Condition Group Nodes evaluate multiple Condition Node inputs and combine their results based on a logical operator.

  • These nodes do not modify backend data and have no side effects.

Port Connection Rules​

  • Input Ports​

    Condition Node​

    Input ports depend on the specific condition type.

    Input ports can connect from:

    These inputs provide the values required to evaluate the condition.

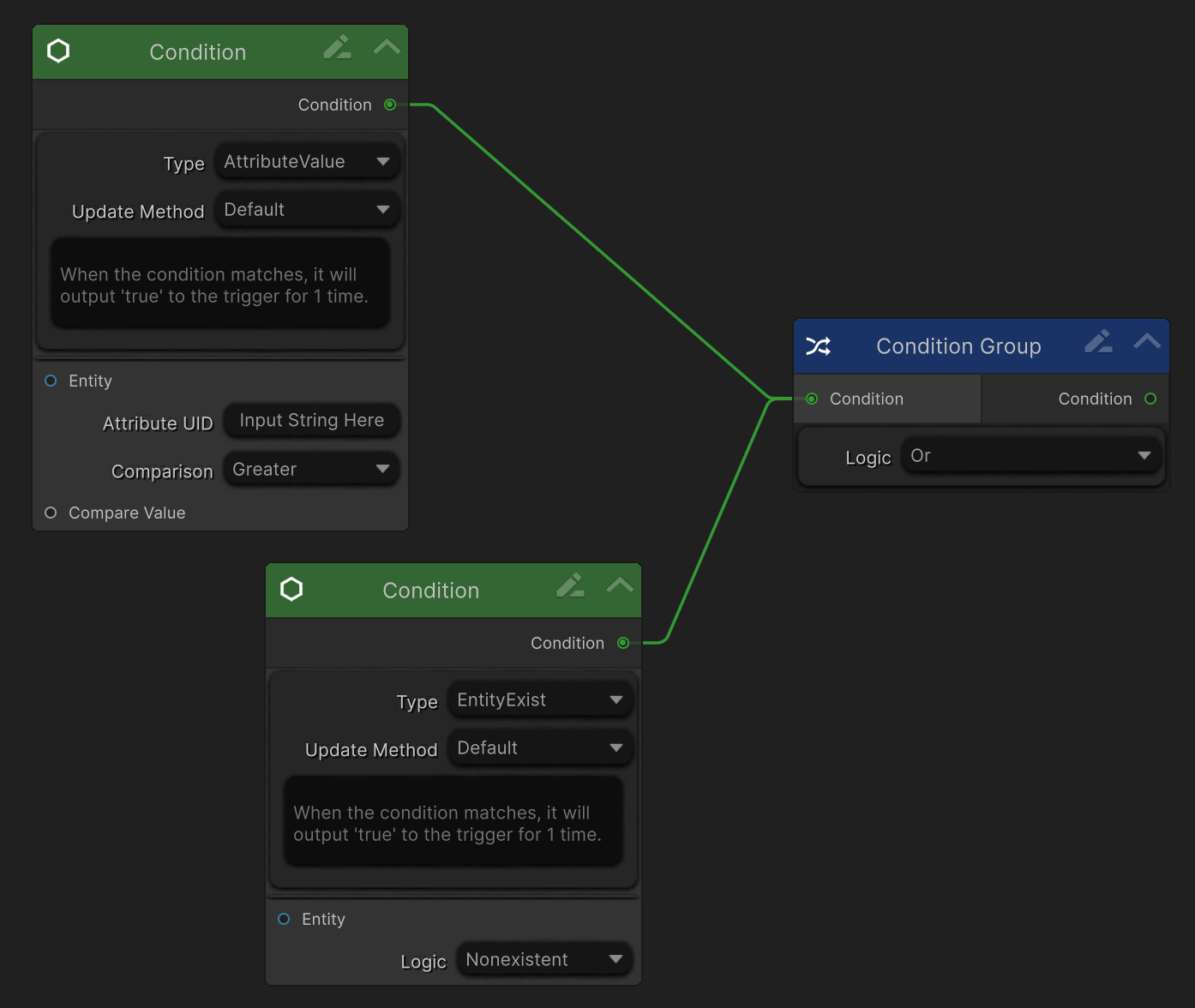

    Condition Group Node​

    • Accepts multiple Condition Node outputs as input.

    • Input ports can connect only from:

      • Condition Nodes

    Each input represents a boolean value to be combined.

  • Output Ports​

    Condition Node​

    • Condition Output Port

    Condition Group Node​

    • Condition Output Port

      • Outputs True or False

      • Can connect to:

      • Condition Group Nodes can be nested to form complex logical structures.

Condition Group Types​

Condition Group Nodes support multiple logical operators:

  • AND — Outputs True if all input conditions are True

  • OR — Outputs True if at least one input condition is True

  • XOR — Outputs True if exactly one input condition is True

  • NOR — Outputs True if all input conditions are False

The selected type determines how input conditions are combined.

Common Use Cases​

Typical Condition and Condition Group use cases include:

  • Attribute comparisons

  • State or flag checks

  • Cooldown or timing validation

  • Complex rule evaluation

  • Multi-condition gating for Triggers or Branches

They are frequently used together to express readable and reusable logic.

Design Philosophy​

Condition Nodes and Condition Group Nodes are designed to be:

  • Pure (no side effects)

  • Composable (can be chained and nested)

  • Reusable across different graphs

Separating condition evaluation from flow control and execution improves clarity and maintainability.

Summary​

  • Condition Nodes evaluate individual conditions

  • Condition Group Nodes combine multiple conditions

  • Both output boolean results

  • They are used by Trigger Node and Branch Node
