HealthBarCanvas

class SoftKitty.MasterHealthBarSystem.HealthBarCanvas : MonoBehaviour

Description​

HealthBarCanvas is the scene-level canvas controller for the health bar system. It provides the rendering roots used by world-space health bars, floating combat text, and pooled UI objects.

Scene Requirement​

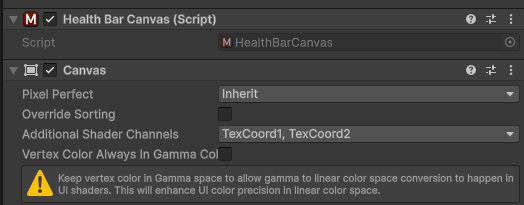

HealthBarCanvas is used so the system can find the UI Canvas that should display world-space HealthBar elements. Your scene must contain one and only one HealthBarCanvas. On the same GameObject, also add Unity's Canvas component. In the Canvas component, enable TexCoord1 and TexCoord2 under Additional Shader Channels. This allows the shader to receive runtime data through UV2 and UV3 channels and helps avoid creating multiple material instances.

Public Static Properties​

HealthBarCanvas instance​

Returns the active singleton instance. If no instance exists, the system will try to find one in the scene. If none is found, it logs an error and may auto-create one under a detected CanvasScaler.

Camera MainCamera​

Returns the camera used by the system for world-to-screen conversion. By default, it uses Camera.main unless overridden.

Vector2 ScreenSize​

Returns the cached canvas size used by the UI system. It resolves from CanvasScaler, root RectTransform, or parent RectTransform.

Core Method​

void SetMainCamera(Camera _camera)​

Overrides the default camera used for 3D view calculations. Call this when your project does not use the standard MainCamera tag or when you need a custom rendering camera.

Runtime Behavior​

  • On Awake(), duplicate HealthBarCanvas instances are detected and removed.
  • On Awake(), the manager is initialized automatically through HealthBarManager.Init().
  • Child roots such as HealthBarRoot, FloatingBarRoot, and PoolRoot are created lazily when first accessed.

Usage Notes​

  • Place HealthBarCanvas under your main UI canvas.
  • Use a full-screen RectTransform layout.
  • If bars do not render, first verify that the scene contains exactly one HealthBarCanvas and that the attached Canvas has TexCoord1 and TexCoord2 enabled.
