Fog of War

The Fog of War system allows you to dynamically reveal or hide areas of your map, commonly used in RPG, RTS, and exploration-based games.

It is fully integrated with the Map Navigation system and optimized for performance using GPU rendering.

Requirements​

The Fog of War system only works in Static Map mode.

Static Map = pre-rendered map texture generated via the Map Generator tool.

If you are using Dynamic Map Mode for realtime map rendering, Fog of War will not function.

Setup​

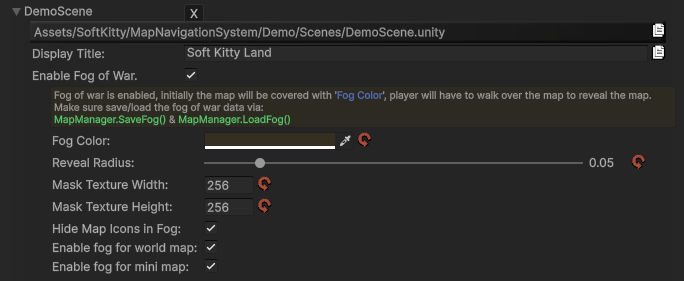

In the Scene | Map settings (see screenshot), you can configure:

Fog Color Controls the visual appearance of the fog. The alpha channel determines the transparency:

  • Alpha = 1 → fully opaque (completely hidden)
  • Alpha = 0 → fully transparent (invisible fog)

Basic Usage​

Fog of War works by masking parts of the map texture.

  • Areas covered by fog → hidden
  • Areas revealed → visible

You can control this either:

  • automatically (via MMN logic)
  • manually (via API)

API Reference​

Fog of War can be fully controlled via MapManager.

Save / Load​

public static string SaveFog()

Convert the current Fog of War state into a JSON string.

public static void LoadFog(string _json)

Restore Fog of War from a previously saved JSON string.

Example:

string data = MapManager.SaveFog();
MapManager.LoadFog(data);

Modify Fog​

public static void AddFog(Vector3 _worldPos, float _radius)

Add fog at a world position.

  • _worldPos → world space position
  • _radius → normalized (0 ~ 1), relative to map size
public static void RemoveFog(Vector3 _worldPos, float _radius)

Reveal an area (remove fog).

  • _worldPos → world space position
  • _radius → normalized (0 ~ 1), relative to map size

Example:

// Reveal area around player
MapManager.RemoveFog(player.transform.position, 0.05f);

Global Control​

public static void ClearFog()

Reveal the entire map.

public static void FillFog()

Cover the entire map with fog.

Example:

// Reveal the entire map
MapManager.ClearFog();

Performance Notes​

  • Fog of War is implemented using GPU rendering (RenderTexture)
  • Avoid frequent full updates (e.g. calling FillFog() every frame)
  • Incremental updates (AddFog/RemoveFog) are very cheap
